Recently, Amazon Hose & Rubber Company partnered with several customers to help alleviate their down-time by placing a Continental ContiTech hydraulic hose crimper in their repair facilities. This program benefits the customers that we partner with by managing their cost and down-time. Our Territory Managers are able to diagnosis the customer requirements by surveying their equipment and working closely with their shop personnel.

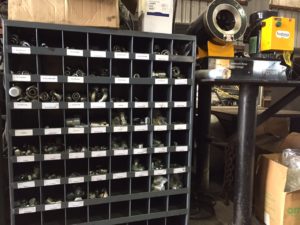

Amazon Hose is then able to place the proper equipment and inventory so that the customer can now cut, couple and assemble on-site in their shop. We can now monitor the customer’s inventory for them, ensuring they are always properly stocked with the correct inventory levels to keep them up and running!
PC150H Series Crimper
Description: The PC150H offers the ease of use of a horizontal crimper with the power and precise adjustment capabilities usually found in more costly models. With the same crimping capability as the PC150 Series, the “H” model offers hose feed horizontally from either front or rear through a large 4.9-inch throat opening. The PC150H can be ordered with a 1 HP electric pump (PC150H-1) or a 2 HP electric pump (PC150H-2), producing maximum force in a small package. The PC150H make repetitive crimps fast and easy to accomplish with a precise, direct-read digital adjustment and a built-in cylinder retraction stop. The PC150H also offers convenience features found in both our vertical and horizontal crimpers including a pneumatic start/stop pendant switch, a magnetic die change tool, an optional die rack for storing dies, and master die grease fittings as a special feature for easy lubrication.
Features:
- Easy-to-read micrometer provides precise crimp settings
- Hose feed is horizontal from both front and rear
- Easy die loading with magnetic die change tool
- Max die size 56mm
- 155-ton crimping force
- Automatic shutoff for precise crimps
- Retraction stop limits die travel for faster repetitive crimps
- Large 13-quart oil reservoir to cool components during repetitive crimps
- Pneumatic activation using remote pendant switch
- 1 HP and 2 HP power options
Capability: 1/4″ through 1½” ID, 2-braid hose and 4-spiral hose with all coupling styles and most bent tubes
Additional sizes of hydraulic crimpers are available upon request to meet your requirements. Contact a Sales Representative today to get your vendor managed inventory solutions!
