Quick Disconnects for Skid Steers and Excavators

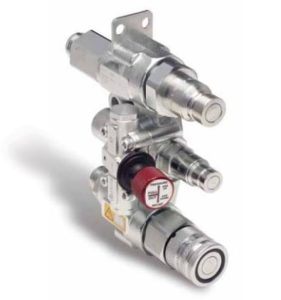

Stucchi ProductAmazon Hose & Rubber Company is a master distributor for Stucchi hydraulic quick disconnects, including the Saturn Block attachment for skid steer and excavator applications. The Saturn Block enables fast and convenient changing of skid steer accessories.

Saturn Block

Technical Features & Options:

  • Interchangeability of couplings: equipped with ISO 16028 couplings size 1/2, 5/8, and 3/4 inch. Drain line is ISO 16028 size 3/8 or 1/2 inch male
  • Couplings type: flat face
  • Connection system: push to connect
  • Disconnection system: pulling back the sleeve of the female coupling
  • Connection with residual pressure: after draining the pressure with the knob
  • Disconnection with residual pressure: after draining the pressure with the knob
  • Threads available: 3/4 JIC for pressure lines, 3/8 SAE for drain line
  • Threads on request: metric DIN, ORFS, SAE, BSP and others
  • Surface treatment: CrIII zinc plated
  • Seals: standard in NBR (Nitrile), POM
  • Anti-extrusion rings: PTFE

Main Applications:

  • Skid steers
  • Excavators
  • Mobile construction equipment
  • Mini-excavators

Features & Options:

  • User-friendly relief system allows for easy connection/ disconnection with residual pressure
  • Drain the residual pressure before connection and disconnection, allowing the connection without pressure and without effort in order to reduce injury risk
  • Equipped with ISO 16028 interchangeable size 1/2 male & female parts flat face. Drain line in the middle is 3/8 size male. Direct replacement for other connect under pressure systems Low cost field replacement couplers Modular design allows for optional size 5/8 or 3/4 body male & female for high flow circuits and 1/2 drain line

Stucchi LogoStucchi is an “ISO 9001 / Vision 2000” certified manufacturer of hydraulic quick disconnects based in Brignano, Italy with U.S. operations in Romeoville, IL. Our solutions based approach meets the demanding requirements for a variety of applications spanning multiple markets including Construction, Agriculture, Automation, Chemical, Off-Shore / Land based Oil & Gas, Pulp & Paper, Plastics, Public Utilities, and many others.
Stucchi is a recognized global leader in the design and manufacturing of quick coupling products providing a variety of sizes and port configurations ranging from 1/8 inch to 2-1/2 inch sizes to accommodate a wide field of application requirements. Our pressure capabilities extend to 10,000 psi working pressure, port configurations include imperial & metric standard in stock, materials from Brass to 316 Stainless Steel, and an assortment of seal options.

For more information concerning your specific application, contact us online or give us a call at (800) 506-5514 today!
